Sunday 22 September 2013
Week 110 - Fuel Selector
Hours to date: 1124.0
The access panels on the lower fuse are now finished.
Both came out very well - practise makes perfect (well an improvement on last time anyway).
The airstream passing by should hardly know they are there.
Onto the fuel selector.
No expense spared here - top of the range Andair (Made in England). A beautiful piece of kit - and so it should be for £276.
I also bought a check valve from them (a one way valve) - and that was a whopping £62.40. This will be used in the return line for the fuel system.
I've located the fuel selector in roughly the same area as Pete does.
The French Twister has the fuel selector on the right-hand side of the cockpit area. This is a no-go for me as my oil cooler occupies that space. Also I will have a side pocket in that area - plus I don't like all the extra plumbing that is involved just to have the fuel selector in that place.
I've had to move my location forward from where Pete puts his due to the fact he has retractable gear and I have fixed gear. The fixed gear runs right across where he puts his fuel selector.
I've gone as close to the gear as I dare. The selector is easy for me to reach in the cockpit - although I will have to slacken off my shoulder straps to do so. No bad thing in my mind as changing the fuel should not be a duty taken lightly by the pilot.
The tricky part of installing this selector is that it is a flat plate but I am installing into an area which is all compound curves.
So how to get around that problem?
Simples.
I ground away the top layer of Kevlar on the cell and all the honeycomb in the area needed. Bevelling the edges down as I went to give a smooth transition.
This leaves just the bottom layer of Kevlar which is now flexible and so can be made flat with the selector and top face plate bolted together - thereby crushing the Kevlar layer to make it flat.
After putting release wax on everything and cutting out 2 layers of carbon I was ready to go.
Once this carbon is set hard it will make this area flat. Then I will add another 3 layers of carbon to the bottom of the cell in the same area - should be plenty strong enough.
I used flock to fill in the exposed honeycomb and make a smooth transition to the rest of the cell.
As you can see the selector is nowhere near my leg and can only be turned off by lifting the knob on the dial anyway so there is no danger of it being turned off by mistake. Also the rudder action is not one where you need to move your legs back and forth - just your ankles move the tops of your feet - so again this should not introduce any unwanted bumping of the fuel selector.
The access panels on the lower fuse are now finished.
Both came out very well - practise makes perfect (well an improvement on last time anyway).
The airstream passing by should hardly know they are there.
Onto the fuel selector.
No expense spared here - top of the range Andair (Made in England). A beautiful piece of kit - and so it should be for £276.
I also bought a check valve from them (a one way valve) - and that was a whopping £62.40. This will be used in the return line for the fuel system.
I've located the fuel selector in roughly the same area as Pete does.
The French Twister has the fuel selector on the right-hand side of the cockpit area. This is a no-go for me as my oil cooler occupies that space. Also I will have a side pocket in that area - plus I don't like all the extra plumbing that is involved just to have the fuel selector in that place.
I've had to move my location forward from where Pete puts his due to the fact he has retractable gear and I have fixed gear. The fixed gear runs right across where he puts his fuel selector.
I've gone as close to the gear as I dare. The selector is easy for me to reach in the cockpit - although I will have to slacken off my shoulder straps to do so. No bad thing in my mind as changing the fuel should not be a duty taken lightly by the pilot.
The tricky part of installing this selector is that it is a flat plate but I am installing into an area which is all compound curves.
So how to get around that problem?
Simples.
I ground away the top layer of Kevlar on the cell and all the honeycomb in the area needed. Bevelling the edges down as I went to give a smooth transition.
This leaves just the bottom layer of Kevlar which is now flexible and so can be made flat with the selector and top face plate bolted together - thereby crushing the Kevlar layer to make it flat.
After putting release wax on everything and cutting out 2 layers of carbon I was ready to go.
Once this carbon is set hard it will make this area flat. Then I will add another 3 layers of carbon to the bottom of the cell in the same area - should be plenty strong enough.
I used flock to fill in the exposed honeycomb and make a smooth transition to the rest of the cell.
As you can see the selector is nowhere near my leg and can only be turned off by lifting the knob on the dial anyway so there is no danger of it being turned off by mistake. Also the rudder action is not one where you need to move your legs back and forth - just your ankles move the tops of your feet - so again this should not introduce any unwanted bumping of the fuel selector.
 |

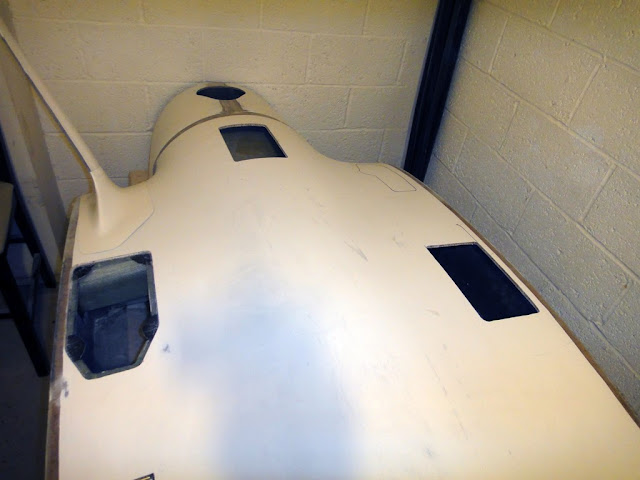

| Final stage of the access panels - closing the gaps with Micro |
 |
| Panels and access hole done. |
 |
| A flush fitting access panel |
 |
| Andair fuel selector and check valve |
 |
| Location underneath - black line is where the gear leg runs over |
 |
| Fuel selector - in relation to pilots leg |
 |
| Ditto - set to Right tank here. |
 |
| 2 layers of carbon going on top. Face plate bolted down to make it flat. |
Monday 16 September 2013
Week 109 - Cell end cover and Access panels
Hours to date: 1109.75
I've installed the safety cell cover mountings.
As you'll see below these are rather nifty little fixings made for composites.
They have spikes which embed themselves into the honeycomb and then a layer of glass is used over the outside end as a final way to make sure they stay put.
Fits pretty good - one of the easier jobs on a Twister.
Pete says you cannot have too many access panels in the lower fuse area. So I've made another 2 to add to the one already done as part of the oil cooler mod.
The same method is used as before to make the flanges.
I've put one access panel in the front area which will give good access to the fuel system. And the other on the port side - which gives access to the throttle/brake assembly, parking brake and flap drive.
Obviously on a retractable you already have the wheel well holes that act as good access areas.
I also thought while I'm making these holes I may as well go ahead and cut out the holes for the undercarriage legs.
I first tried using the factory markings. But as you will see below they are not enough - I am guessing those markings are for the retractable version.
By doing this job slowly I was able to get a hole that is no bigger than it needs to be but allows the undercarriage legs to come in and out.
I've also started to fit the upper U/C leg fairings.
I'm not going to attach them the way the manual says. Rather I will go for the same idea as Adrian Hatton and put nut plates underneath the fuse and then leave the lower area as it is here - as the U/C leg needs to be able to flex and move in relation to the fairing.
The reason for the change of set up is - I don't believe the fairing can be made to sit flush with the lower part of the fuse using the method described in the manual. It would be an area of great drag if it doesn't sit exactly flush.
I've installed the safety cell cover mountings.
As you'll see below these are rather nifty little fixings made for composites.
They have spikes which embed themselves into the honeycomb and then a layer of glass is used over the outside end as a final way to make sure they stay put.
Fits pretty good - one of the easier jobs on a Twister.
Pete says you cannot have too many access panels in the lower fuse area. So I've made another 2 to add to the one already done as part of the oil cooler mod.
The same method is used as before to make the flanges.
I've put one access panel in the front area which will give good access to the fuel system. And the other on the port side - which gives access to the throttle/brake assembly, parking brake and flap drive.
Obviously on a retractable you already have the wheel well holes that act as good access areas.
I also thought while I'm making these holes I may as well go ahead and cut out the holes for the undercarriage legs.
I first tried using the factory markings. But as you will see below they are not enough - I am guessing those markings are for the retractable version.
By doing this job slowly I was able to get a hole that is no bigger than it needs to be but allows the undercarriage legs to come in and out.
I've also started to fit the upper U/C leg fairings.
I'm not going to attach them the way the manual says. Rather I will go for the same idea as Adrian Hatton and put nut plates underneath the fuse and then leave the lower area as it is here - as the U/C leg needs to be able to flex and move in relation to the fairing.
The reason for the change of set up is - I don't believe the fairing can be made to sit flush with the lower part of the fuse using the method described in the manual. It would be an area of great drag if it doesn't sit exactly flush.
 |
| Cell end cover in place |
 |
| Fixing before layer of glass |
 |
| Composite fixing - note the spikes. |
 |
| Cut out for the gear leg - using factory markings - not big enough |
 |
| Too tight in this area |
 |
| Extra access panel holes - top and right |
 |
| Gear fairing fits nicely to the leg - after a bit of sanding on the inside. |
 |
| This is the shape you need to go for. |
 |
| One flange layed up - one to do. |
Sunday 8 September 2013
Week 108 - Control stops and Upholstery
Hours to date: 1097.5
I've made up the carbon plate that goes over the parking brake and am pretty pleased with the way it turned out.
I used 6 layers of carbon and duct tape as a release.
It is screwed into place with 4 self tappers.
Solid as a rock now.
As promised I've included a picture of the rudder control stops in their finished state. I made a small 'mountain' of micro in between both the stops to transfer some of the load. Hopefully this will be strong enough.
The next control stop job was the elevator - which I have to say is one of the easiest jobs so far on the Twister.
The up elevator limit is already set by the elevator hexes when you bond them in. This uses the lower carbon rib in the fin area as a stop for the Brass weight and is set at 80mm.
For the down limit the upper carbon rib is used but has to have a small plywood block bonded on to set the limit in exactly the right place. 60mm.
Piece of cake.
As you will see below I have had some samples made up for the upholstery on the seat (and side pocket).
I'm going for a dark grey leather (to match the rest of the cockpit interior) set off with orange stitching.
The centre of the seat will have an orange stripe - most likely in Dynamica (a cheaper version of Alcantara).
Should be a good look.
I need to crack on and get the seat fitted and painted then I can send that off for upholstering.
I've made up the carbon plate that goes over the parking brake and am pretty pleased with the way it turned out.
I used 6 layers of carbon and duct tape as a release.
It is screwed into place with 4 self tappers.
Solid as a rock now.
As promised I've included a picture of the rudder control stops in their finished state. I made a small 'mountain' of micro in between both the stops to transfer some of the load. Hopefully this will be strong enough.
The next control stop job was the elevator - which I have to say is one of the easiest jobs so far on the Twister.
The up elevator limit is already set by the elevator hexes when you bond them in. This uses the lower carbon rib in the fin area as a stop for the Brass weight and is set at 80mm.
For the down limit the upper carbon rib is used but has to have a small plywood block bonded on to set the limit in exactly the right place. 60mm.
Piece of cake.
As you will see below I have had some samples made up for the upholstery on the seat (and side pocket).
I'm going for a dark grey leather (to match the rest of the cockpit interior) set off with orange stitching.
The centre of the seat will have an orange stripe - most likely in Dynamica (a cheaper version of Alcantara).
Should be a good look.
I need to crack on and get the seat fitted and painted then I can send that off for upholstering.
 |
| Rudder control stops |
 |
| Elevator control stop 'down' position |
 |
| Set to 60mm |
 |
| Leather sample for seat |
 |
| Ditto |
 |
| Carbon cover plate over the parking brake |
Wednesday 4 September 2013
LAA Rally - Sywell
It's that time of year again.
I just paid a quick visit to the Rally this year on the Sunday.
A few of the highlights are below.
For more info about the Verhees Delta follow this link: http://www.verheesengineering.com/gb/delta.html
I just paid a quick visit to the Rally this year on the Sunday.
A few of the highlights are below.
For more info about the Verhees Delta follow this link: http://www.verheesengineering.com/gb/delta.html
 |
| 3/4 scale Mosquito replica from France. 30,000 hours build time! |
 |
| Morane Saulnier Parasol wing |
 |
| Brandli Cherry BX-2 Swiss designed plans build. |
 |
| One off warbird looking homebuilt |
 |
| Another single seat composite machine (Starlight SL-1) not many of these about |
 |
| The bizarre and brilliant Verhees Delta |
 |
| Spitfire Mk26 with Jabiru flat 8. |
 |
| UKs newest design - Swift. Wonder where they got the wing shape inspiration from?? |
 |
| UK agent for UL Power - Mark Jones |
 |
| Travel Air Mystery Ship - 1920's air racer (NOT MY PHOTO) |
 |
| Verhees Delta again... |
